Telekomunikazzjoni Thin Rg59 RG6 Rg7 Rg8 Rg11 Coaxial Cable CCTV CATV HDTV Camera Cable Pjanċa tal-injam

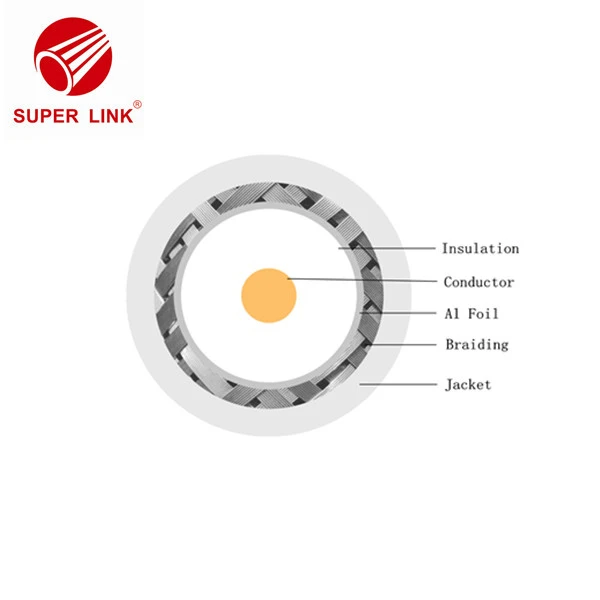

KOSTRUZZJONI BAŻIKA RG6 75OHM:
| TRI-TARKA | QUAD-SHIELD | ||
| MATERJAL | BC/CCS | BC/CCS | BC/CCS |
Nom.Dia. | 18AWG | 18AWG | 18AWG | |
| MATERJAL | Fowm PE | Fowm PE | Fowm PE |
Nom.Dia. | 4.57mm | 4.57mm | 4.57mm | |
| MATERJAL | Al Foil+Al Braiding | Al Foil+Al Braiding+Al Foil | (Al Foil+Al Braiding)*2 |
KOPERTURA | 40%-95% | 40%-95% | 40%-60% | |
| MATERJAL | PVC/PE | PVC/PE | PVC/PE |
Nom.Oħxon. | 0.80mm | 0.80mm | 0.86mm | |
Nom.Dia. | 6.91mm | 7.06mm | 7.62mm |
Ippakkjar& Kunsinna:
Dettalji tal-Ippakkjar
Pakkett: 305m f'kaxxa,
2 kaxxi f'kartuna
Daqs tal-kartun: 40 * 37 * 37cm
Attenwazzjoni @68°F (20℃) | |||
Frekwenza (MHz) | Massimu (dB/100m) | Frekwenza (MHz) | Massimu (dB/100m) |
5 | 1.9 | 865 | 20.01 |
55 | 5.25 | 1000 | 21.49 |
187 | 9.35 | 1200 | 26.16 |
300 | 11.64 | 1450 | 27.73 |
450 | 14.43 | 1800 | 31.15 |
600 | 16.73 | 2200 | 31.92 |
750 | 18.54 | 3000 | 37.5 |
